Spring源码-Aspect-Advisor与代理Interceptor

发表于： 2025-03-16

字数： 1908 阅读：≈ 4分钟

总结摘要

Spring Aspect Advisor与代理Interceptor

前置知识
Java JDK 动态代理使用方法，Java CGLIB 动态代理动态

Spring 代理与 Advisor

Spring JDK 动态代理

JdkDynamicAopProxy 是 InvocationHandler 的实现类，其 invoke 方法从 Spring 容器中获取所有匹配的 Spring AOP advisor，将其转换为 Interceptor。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
// org.springframework.aop.framework.JdkDynamicAopProxy
final class JdkDynamicAopProxy implements AopProxy, InvocationHandler, Serializable {
    private final AdvisedSupport advised;

    @Override
    @Nullable
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        //...
        List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
        //...
        MethodInvocation invocation =
        new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
        retVal = invocation.proceed();
        //...
    }
}

Spring CGLIB 动态代理

CglibAopProxy（及其实现类 ObjenesisCglibAopProxy）使用 DynamicAdvisedInterceptor，其是 MethodInterceptor 实现类，该类的 intercept 方法从 Spring 容器中获取所有匹配的 Spring AOP advisor，将其转换为 Interceptor。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
// org.springframework.aop.framework.CglibAopProxy
class CglibAopProxy implements AopProxy, Serializable {
	private Callback[] getCallbacks(Class<?> rootClass) throws Exception {
        //...
		Callback aopInterceptor = new DynamicAdvisedInterceptor(this.advised);
        //...
        this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, rootClass);
        //...
    }

	private static class DynamicAdvisedInterceptor implements MethodInterceptor, Serializable {

		private final AdvisedSupport advised;

		public DynamicAdvisedInterceptor(AdvisedSupport advised) {
			this.advised = advised;
		}

		@Override
		@Nullable
		public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
            //...
            this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
            //...
            new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
            //...
        }
    }

	private static class ProxyCallbackFilter implements CallbackFilter {
		@Override
		public int accept(Method method) {
            //...
            this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
            //...
        }
    }
}

Advisor 与 Interceptor

代理公共逻辑

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
// org.springframework.aop.framework.AdvisedSupport
public class AdvisedSupport extends ProxyConfig implements Advised {
    public List<Object> getInterceptorsAndDynamicInterceptionAdvice(Method method, @Nullable Class<?> targetClass) {
        MethodCacheKey cacheKey = new MethodCacheKey(method);
        //...
        this.advisorChainFactory.getInterceptorsAndDynamicInterceptionAdvice(this, method, targetClass);
        //...
    }
}

// org.springframework.aop.framework.DefaultAdvisorChainFactory
public class DefaultAdvisorChainFactory implements AdvisorChainFactory, Serializable {
    @Override
    public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
        Advised config, Method method, @Nullable Class<?> targetClass) {
        //...
        AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();
        Advisor[] advisors = config.getAdvisors();
        //...
        for (Advisor advisor : advisors) {
            if (advisor instanceof PointcutAdvisor) {
                //...
                MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
                //...
            }
        }
    }
}

Advisor 转换为 Interceptor

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
// org.springframework.aop.framework.adapter.GlobalAdvisorAdapterRegistry
public final class GlobalAdvisorAdapterRegistry {
	private static AdvisorAdapterRegistry instance = new DefaultAdvisorAdapterRegistry();
}

// org.springframework.aop.framework.adapter.DefaultAdvisorAdapterRegistry
public class DefaultAdvisorAdapterRegistry implements AdvisorAdapterRegistry, Serializable {
    // AspectJAfterThrowingAdvice 实现了 AfterAdvice 和 MethodInterceptor，未实现 ThrowsAdvice，不适用 ThrowsAdviceAdapter。
	public DefaultAdvisorAdapterRegistry() {
		registerAdvisorAdapter(new MethodBeforeAdviceAdapter());
		registerAdvisorAdapter(new AfterReturningAdviceAdapter());
		registerAdvisorAdapter(new ThrowsAdviceAdapter());
	}

	@Override
	public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException {
		if (advice instanceof MethodInterceptor) {
			interceptors.add((MethodInterceptor) advice);
		}
		for (AdvisorAdapter adapter : this.adapters) {
			if (adapter.supportsAdvice(advice)) {
				interceptors.add(adapter.getInterceptor(advisor));
			}
		}
        //...
    }
}

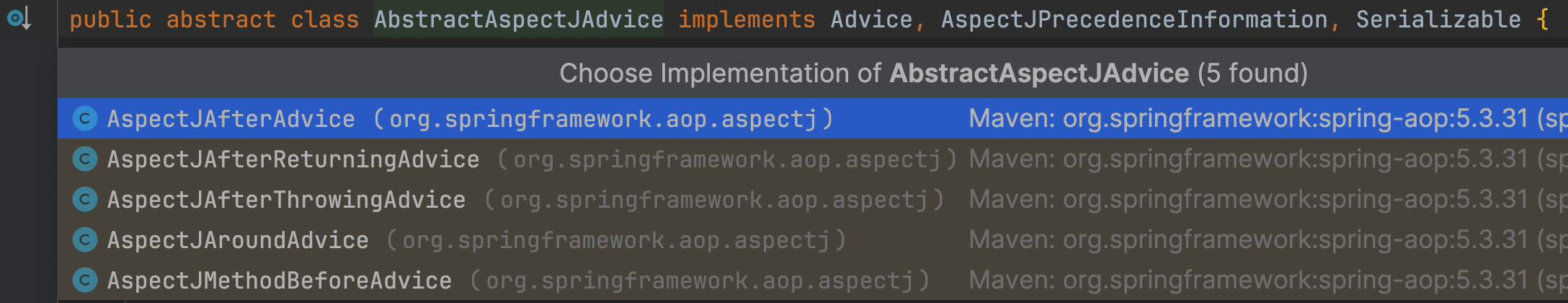

AbstractAspectJAdvice 有 5 个实现类。

AspectJAroundAdvice，AspectJAfterAdvice 和 AspectJAfterThrowingAdvice 实现了 MethodInterceptor。

AspectJMethodBeforeAdvice 和 AspectJAfterReturningAdvice 未实现 MethodInterceptor，分别有对应的 MethodBeforeAdviceInterceptor 和 AfterReturningAdviceInterceptor。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
// org.springframework.aop.framework.adapter.MethodBeforeAdviceAdapter
class MethodBeforeAdviceAdapter implements AdvisorAdapter, Serializable {
	@Override
	public boolean supportsAdvice(Advice advice) {
		return (advice instanceof MethodBeforeAdvice);
	}
	@Override
	public MethodInterceptor getInterceptor(Advisor advisor) {
		MethodBeforeAdvice advice = (MethodBeforeAdvice) advisor.getAdvice();
		return new MethodBeforeAdviceInterceptor(advice);
	}
}

// org.springframework.aop.framework.adapter.AfterReturningAdviceAdapter
class AfterReturningAdviceAdapter implements AdvisorAdapter, Serializable {
	@Override
	public boolean supportsAdvice(Advice advice) {
		return (advice instanceof AfterReturningAdvice);
	}
	@Override
	public MethodInterceptor getInterceptor(Advisor advisor) {
		AfterReturningAdvice advice = (AfterReturningAdvice) advisor.getAdvice();
		return new AfterReturningAdviceInterceptor(advice);
	}
}

// AspectJAfterThrowingAdvice 实现了 AfterAdvice 和 MethodInterceptor，因此可以直接作为 Interceptor，无需再次适配。同时，AspectJAfterThrowingAdvice 未实现 ThrowsAdvice，，不适用 ThrowsAdviceAdapter。
// org.springframework.aop.framework.adapter.ThrowsAdviceAdapter
class ThrowsAdviceAdapter implements AdvisorAdapter, Serializable {
	@Override
	public boolean supportsAdvice(Advice advice) {
		return (advice instanceof ThrowsAdvice);
	}
	@Override
	public MethodInterceptor getInterceptor(Advisor advisor) {
		return new ThrowsAdviceInterceptor(advisor.getAdvice());
	}
}

执行 Interceptor

BeforeAdvice

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
// org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor
public class MethodBeforeAdviceInterceptor implements MethodInterceptor, BeforeAdvice, Serializable {
	private final MethodBeforeAdvice advice;

	@Override
	@Nullable
	public Object invoke(MethodInvocation mi) throws Throwable {
		this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis());
		return mi.proceed();
	}
}

// org.springframework.aop.aspectj.AspectJMethodBeforeAdvice
public class AspectJMethodBeforeAdvice extends AbstractAspectJAdvice implements MethodBeforeAdvice, Serializable {
	@Override
	public void before(Method method, Object[] args, @Nullable Object target) throws Throwable {
		invokeAdviceMethod(getJoinPointMatch(), null, null);
	}
}

// org.springframework.aop.aspectj.AbstractAspectJAdvice
public abstract class AbstractAspectJAdvice implements Advice, AspectJPrecedenceInformation, Serializable {

	public AbstractAspectJAdvice(
			Method aspectJAdviceMethod, AspectJExpressionPointcut pointcut, AspectInstanceFactory aspectInstanceFactory) {

		Assert.notNull(aspectJAdviceMethod, "Advice method must not be null");
		this.declaringClass = aspectJAdviceMethod.getDeclaringClass();
		this.methodName = aspectJAdviceMethod.getName();
		this.parameterTypes = aspectJAdviceMethod.getParameterTypes();
		this.aspectJAdviceMethod = aspectJAdviceMethod;
		this.pointcut = pointcut;
		this.aspectInstanceFactory = aspectInstanceFactory;
	}

	protected Object invokeAdviceMethod(
			@Nullable JoinPointMatch jpMatch, @Nullable Object returnValue, @Nullable Throwable ex)
			throws Throwable {

		return invokeAdviceMethodWithGivenArgs(argBinding(getJoinPoint(), jpMatch, returnValue, ex));
	}

	protected Object invokeAdviceMethodWithGivenArgs(Object[] args) throws Throwable {
        //...
        ReflectionUtils.makeAccessible(this.aspectJAdviceMethod);
        return this.aspectJAdviceMethod.invoke(this.aspectInstanceFactory.getAspectInstance(), actualArgs);
        //...
    }
}

其它 Advice

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
// org.springframework.aop.aspectj.AspectJAroundAdvice
public class AspectJAroundAdvice extends AbstractAspectJAdvice implements MethodInterceptor, Serializable {
	@Override
	@Nullable
	public Object invoke(MethodInvocation mi) throws Throwable {
		//...
		return invokeAdviceMethod(pjp, jpm, null, null);
	}
}

// org.springframework.aop.aspectj.AspectJAfterAdvice
public class AspectJAfterAdvice extends AbstractAspectJAdvice
		implements MethodInterceptor, AfterAdvice, Serializable {
	@Override
	@Nullable
	public Object invoke(MethodInvocation mi) throws Throwable {
		try {
			return mi.proceed();
		}
		finally {
			invokeAdviceMethod(getJoinPointMatch(), null, null);
		}
	}
}

// org.springframework.aop.aspectj.AspectJAfterReturningAdvice
public class AspectJAfterReturningAdvice extends AbstractAspectJAdvice
		implements AfterReturningAdvice, AfterAdvice, Serializable {
	@Override
	public void afterReturning(@Nullable Object returnValue, Method method, Object[] args, @Nullable Object target) throws Throwable {
		if (shouldInvokeOnReturnValueOf(method, returnValue)) {
			invokeAdviceMethod(getJoinPointMatch(), returnValue, null);
		}
	}
}

// org.springframework.aop.framework.adapter.AfterReturningAdviceInterceptor
public class AfterReturningAdviceInterceptor implements MethodInterceptor, AfterAdvice, Serializable {
	private final AfterReturningAdvice advice;
	@Override
	@Nullable
	public Object invoke(MethodInvocation mi) throws Throwable {
		Object retVal = mi.proceed();
		this.advice.afterReturning(retVal, mi.getMethod(), mi.getArguments(), mi.getThis());
		return retVal;
	}
}

// org.springframework.aop.aspectj.AspectJAfterThrowingAdvice
public class AspectJAfterThrowingAdvice extends AbstractAspectJAdvice
		implements MethodInterceptor, AfterAdvice, Serializable {
	@Override
	@Nullable
	public Object invoke(MethodInvocation mi) throws Throwable {
		try {
			return mi.proceed();
		}
		catch (Throwable ex) {
			if (shouldInvokeOnThrowing(ex)) {
				invokeAdviceMethod(getJoinPointMatch(), null, ex);
			}
			throw ex;
		}
	}
}

批量执行 Interceptor

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
// org.springframework.aop.framework.JdkDynamicAopProxy
final class JdkDynamicAopProxy implements AopProxy, InvocationHandler, Serializable {
	@Override
	@Nullable
	public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        //...
        MethodInvocation invocation =
            new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
        retVal = invocation.proceed();
        //...
    }
}

// org.springframework.aop.framework.CglibAopProxy
class CglibAopProxy implements AopProxy, Serializable {
	private static class CglibMethodInvocation extends ReflectiveMethodInvocation {}

	private static class FixedChainStaticTargetInterceptor implements MethodInterceptor, Serializable {
		@Override
		@Nullable
		public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
			MethodInvocation invocation = new CglibMethodInvocation(
					proxy, this.target, method, args, this.targetClass, this.adviceChain, methodProxy);
			// If we get here, we need to create a MethodInvocation.
			Object retVal = invocation.proceed();
			retVal = processReturnType(proxy, this.target, method, retVal);
			return retVal;
		}
    }

	private static class DynamicAdvisedInterceptor implements MethodInterceptor, Serializable {
		@Override
		@Nullable
		public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
            //...
            retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
            //...
			retVal = processReturnType(proxy, target, method, retVal);
            //...
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
// org.springframework.aop.framework.ReflectiveMethodInvocation
public class ReflectiveMethodInvocation implements ProxyMethodInvocation, Cloneable {
	@Override
	@Nullable
	public Object proceed() throws Throwable {
		// We start with an index of -1 and increment early.
		if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
			return invokeJoinpoint();
		}

		Object interceptorOrInterceptionAdvice =
				this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
		if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
			// Evaluate dynamic method matcher here: static part will already have
			// been evaluated and found to match.
			InterceptorAndDynamicMethodMatcher dm =
					(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
			Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
			if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
				return dm.interceptor.invoke(this);
			}
			else {
				// Dynamic matching failed.
				// Skip this interceptor and invoke the next in the chain.
				return proceed();
			}
		}
		else {
			// It's an interceptor, so we just invoke it: The pointcut will have
			// been evaluated statically before this object was constructed.
			return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
		}
	}
}

Gdev Blog
